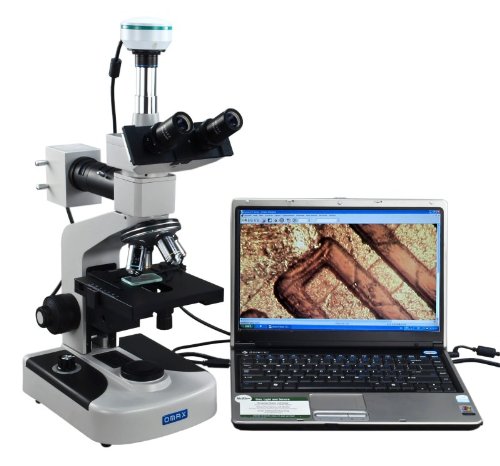

OMAX 40X-1600X Digital Trinocular Metallurgical Microscope with Double Layer Mechanical Stage and 2.0MP USB Camera

OMAX

$2750.00

V83MC20C

Head: 45degrees;Inclined 360degrees;rotatable trinocular; Nosepiece: quadruple; Eyepieces: wide field WF10X and WF16X; Objective: plan field achromatic DIN 4x, 10x, 40x(S), 63x(S), 100x(S, Oil); Total magnification: 40x-64x-100x-160x-400x-630x-640x-1000x-1008x-1600x

Reflected illuminator: 6V/30W halogen; Large stain-resistant double layer stage 5-1/2inch x 5-1/2inch (140mm x 140mm); Large stage moving range: 2-3/4inch x 2inch (70mm x 50mm); Stage vertical stroke (focusing travel distance): 2inch (51mm); Metal stage plate dimension: 3-1/8inch x 1-9/16inch (80mm x 40mm); Focus adjustment: Coaxial coarse and fine knobs on both sides with adjustable tension control; Power supply: 100V-240V, 50/60Hz universal (US and Canada plug)

Digital camera: - true color 1600 x 1200 pixels (2.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows 2000/XP/Vista/Windows 7 32/64-bit, and Mac OS. - Software for PC: live viewing, video recording, image capturing, measurement, and etc. - Software for Mac: Live viewing and capture - USB cable included

Dimension: 12inch x 8inch x 19inch (30.5cm x 20.3cm x 48cm); Net weight: 17 lb 10 oz (8 kg); Shipping package weight: 30 lb (14 kg)
