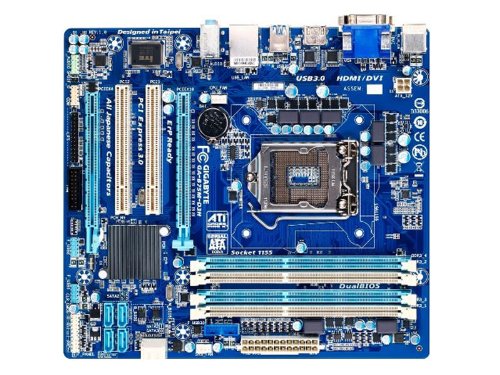

Gigabyte LGA 1155 Intel B75 SATA 6Gb/s USB 3.0 Micro ATX DDR3 1600 Motherboards GA-B75M-D3H

Gigabyte

$79.99

CPU: Support for Intel Core i7 /i5/i3/Pentium/Celeron processors in the LGA1155 package. Chipset: Intel B75 Express Chipset

Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory. Support for DDR3 1600/1333/1066 MHz memory modules. Support for non-ECC memory modules. Support for Extreme Memory Profile (XMP) memory modules

Audio: Realtek ALC887 codec. High Definition Audio. 2/4/5.1/7.1-channel. Support for S/PDIF Out. LAN: 1 x Realtek GbE LAN chip

Expansion Slots: 1 x PCI Express x16 slot, running at x16. 1 x PCI Express x16 slot, running at x4. 2 x PCI slot. AMD CrossFireX technology

Storage Interface: 1 x SATA 6Gb/s connectors. 5 x SATA 3Gb/s connectors.

Back Panel Connectors: 1 x PS/2 keyboard/mouse port/1 x D-Sub port/1 x DVI-D port/1 x HDMI port/2 x USB 3.0/2.0 ports/4 x USB 2.0/1.1 ports/1 x RJ-45 port/3 x audio jacks

Internal I/O Connectors: 1 x 24-pin ATX main power connector/1 x 4-pin ATX 12V power connector/1 x SATA 6Gb/s connector/5 x SATA 3Gb/s connectors/1 x CPU fan header/1 x system fan header/1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/1 x USB 3.0/2.0 header/2 x USB 2.0/1.1 headers/1 x serial port header/1 x parallel port/1 x Trusted Platform Module (TPM) header/1 x Clear CMOS jumper

USB: Up to 8 USB 2.0/1.1 ports. Up to 4 USB 3.0/2.0 ports.
